BetweenUs

▶️ Watch 9:16 Feature Showcase Video (video.mp4)  •  📖 Interactive Features & Video Tour

A modern, secure communication platform with end-to-end encrypted messaging, peer-to-peer (P2P) WebRTC voice/video channels, interactive screen sharing, picture-in-picture, synchronised listening, and remote desktop access. Built as a high-performance pnpm + Turborepo monorepo of NestJS microservices with Desktop (Electron), Web (React), and Native Mobile (Android Jetpack Compose) clients.

Messages and attachments are encrypted on the client, and the server stores and routes only ciphertext. The server also holds each account's vault key, sealed with the deployment's settings secret, so signing in on any device brings the whole history with nothing to type — the Discord-style trade, stated plainly in development/devdocs/E2EE.md. Call media is end-to-end encrypted and never touches a server. Voice, video, and screen sharing stream directly between participants via a peer-to-peer WebRTC mesh with DTLS-SRTP encryption — requiring zero media server infrastructure.

CLAUDE.md is the target architecture. development/ tracks what is built, why each decision was taken, and what is deliberately left open. docs/ is the complete documentation suite covering architecture, services, system design, security, and step-by-step deployment with Docker Compose and Cloudflare Tunnels.

---

Feature Showcase Gallery

A visual tour of BetweenUs across desktop, web, and native mobile platforms:

• Desktop Workbench (pictures/home.png): Floating panel architecture, E2EE chat, inline code, emoji reactions.

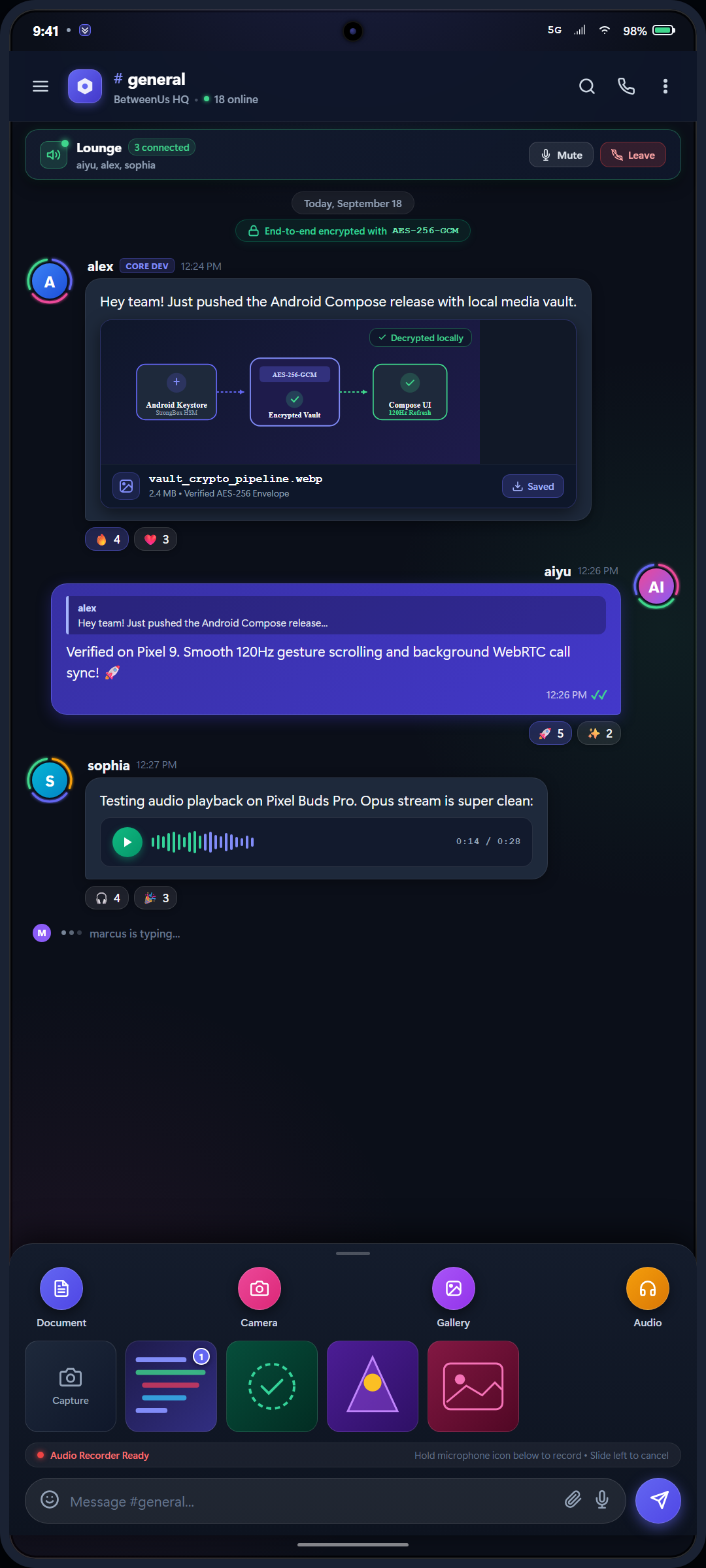

• Native Android Client (pictures/home-android.png): Jetpack Compose Material 3 interface, WhatsApp-style media picker, Moments story rings.

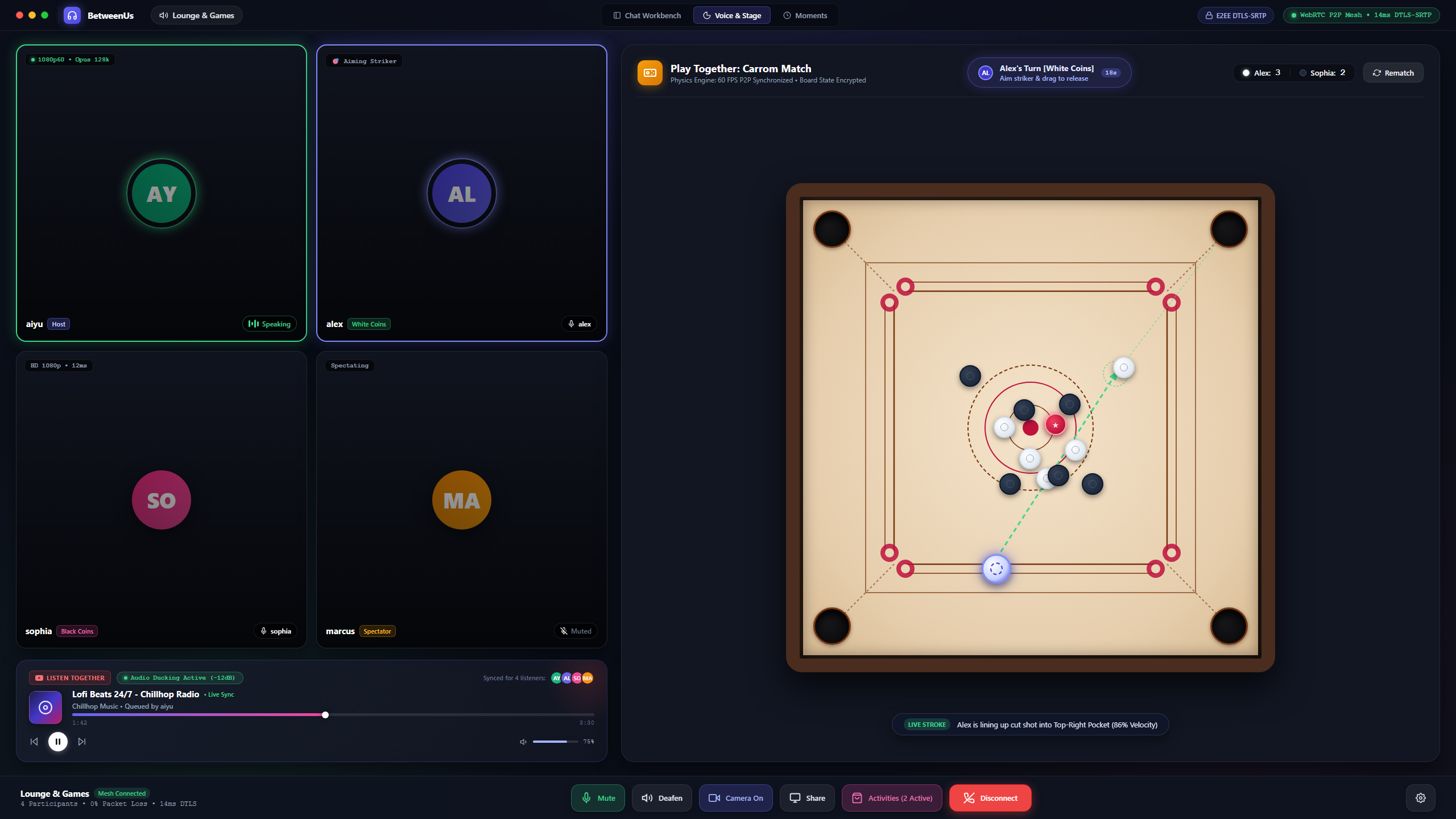

• Voice & Collaborative Activities (pictures/voice-listen-play.png): Direct P2P WebRTC mesh, synchronized YouTube player with audio ducking, in-call Carrom board physics.

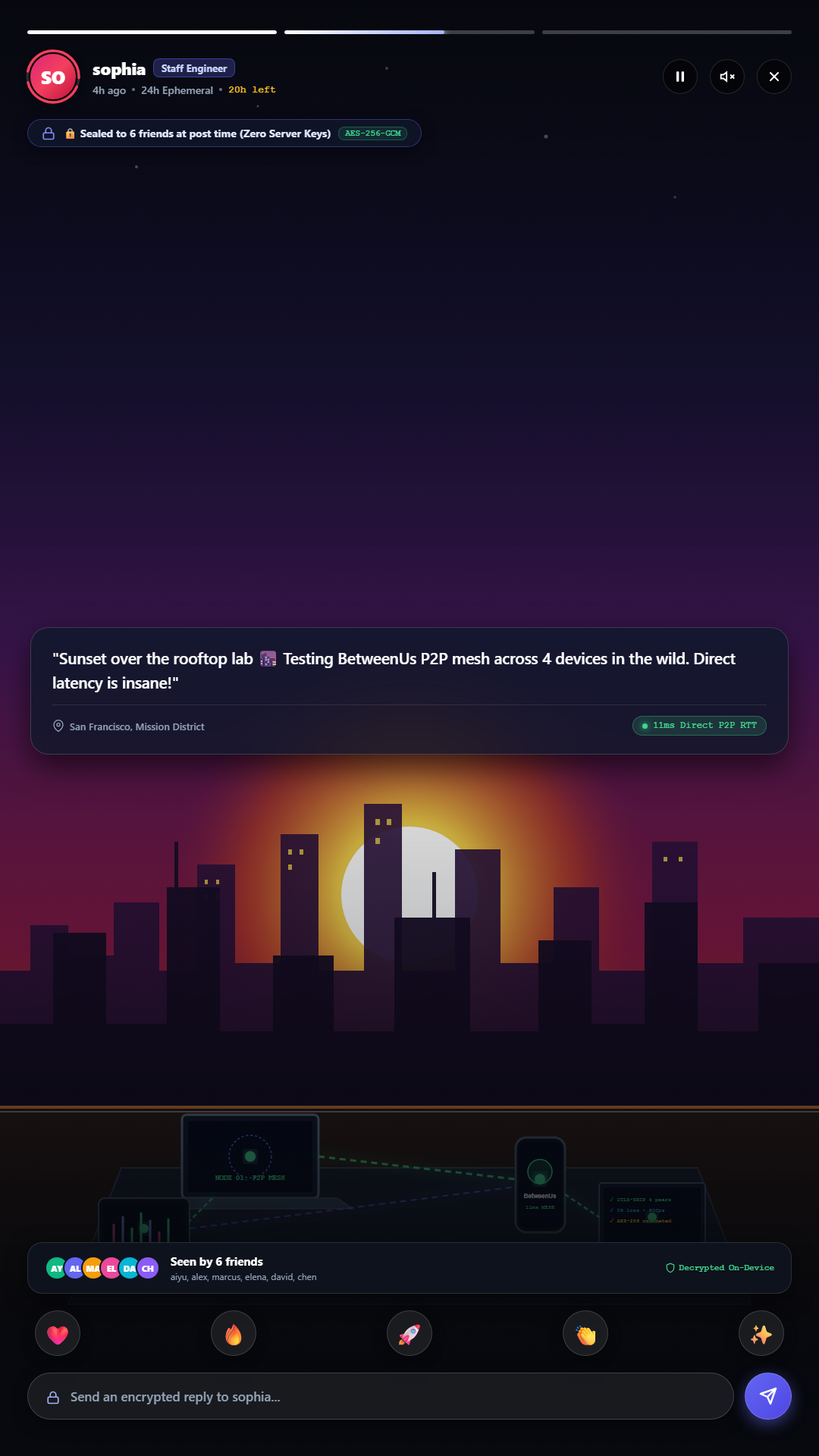

• 24-Hour Ephemeral Moments (pictures/moments-viewer.png): Full-screen story player, recipient key directory freezing, on-device decryption.

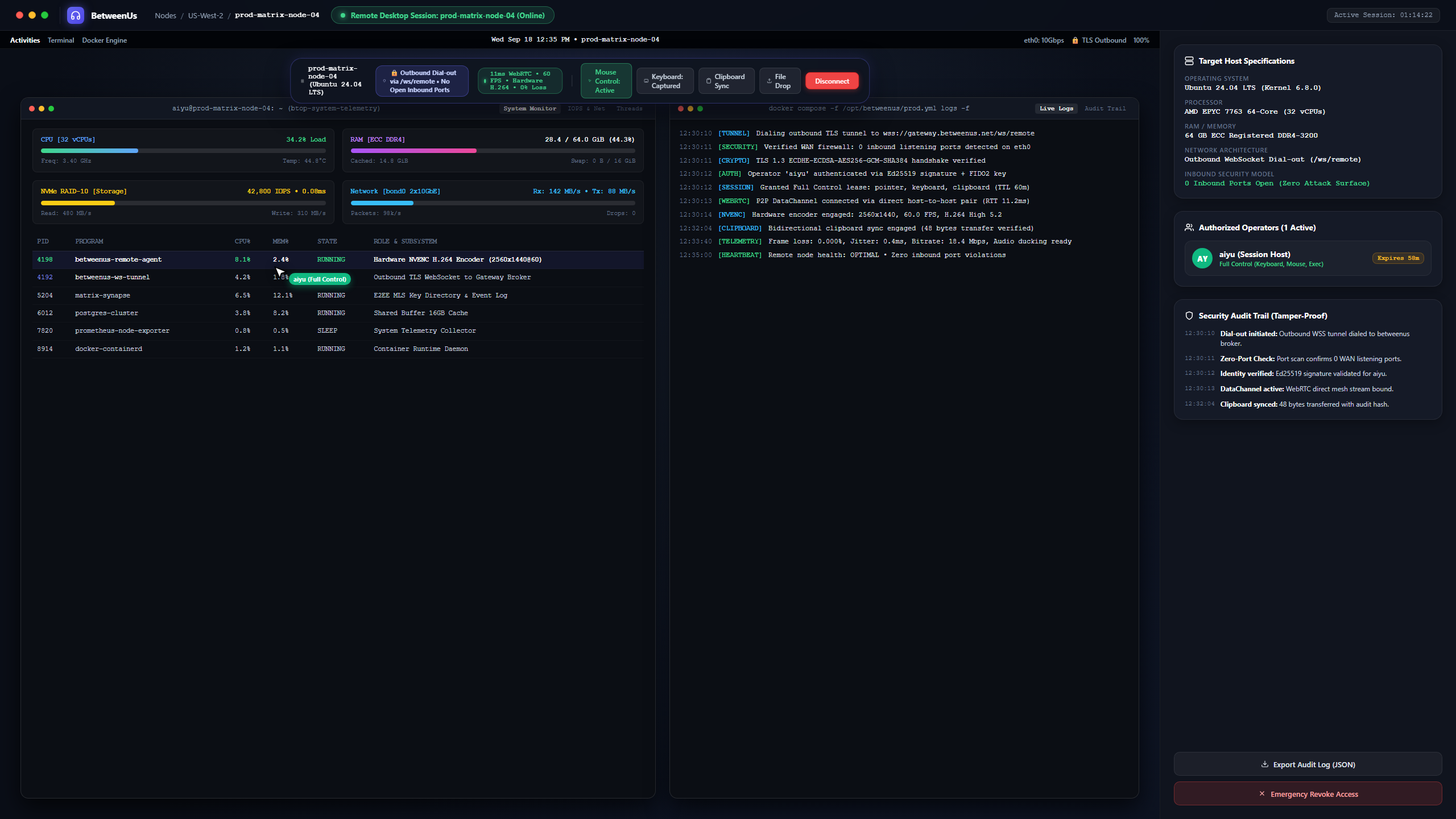

• Secure Outbound Remote Desktop (pictures/remote-desktop.png): Zero inbound port dial-out, live low-latency stream, telemetry monitor.

Desktop Workbench

Floating panel architecture, E2EE chat, inline code, emoji reactions.

Voice & Collaborative Activities

Direct P2P WebRTC mesh, synchronized YouTube player with audio ducking, in-call Carrom board physics.

Native Android Client & 24-Hour Ephemeral Moments

Jetpack Compose Material 3 interface, WhatsApp-style media picker, Moments story rings, and on-device decryption.



Secure Outbound Remote Desktop

Zero inbound port dial-out, live low-latency stream, telemetry monitor.

---

Status

Features, and where each one works

Desktop is the Electron app, Web is the same UI in a browser tab (apps/web mounts apps/desktop/src, so they are one codebase), and Android is the native Compose client.

Where the three differ it is almost always for one reason: screen capture by source, synthetic mouse and keyboard input and the OS keychain live behind the Electron preload bridge, and a browser tab has none of them. Browsing YouTube inside the app is the one exception with a different cause - youtube.com refuses to be framed, so no browser tab can ever show it.

* The admin panel is its own bundle at /admin, so it is a browser page whichever client you arrived from.

Push suppression works the same way WhatsApp's does: if any of your windows has a channel open and focused, none of your devices is woken for a message in it, and a notification already showing on a phone goes away when you read that conversation on a laptop. A different channel still buzzes normally, even in the same server. See docs/docs/architecture/push-suppression.md.

---

Known limits are written down rather than implied: see development/E2EE.md for what the encryption does and does not protect, development/SECURITY.md for who the API believes and what it still does not defend against, and development/TODO.md for everything each phase left open on purpose.

---

Architecture

Five concerns are kept strictly apart: public ingress, internal routing, application microservices, realtime P2P media, and remote desktop access.

flowchart TD
    %% TIER 1: CLIENT SENDER
    subgraph T1 ["Trust Boundary 1: Client Origin (Untrusted)"]
        direction TB
        ClientSender["<b>Sender Client (Desktop / Web / Android)</b><br/><i>Encrypts Payload locally with AES-256-GCM · Direct P2P Media</i>"]
    end

    %% TIER 2: INGRESS DMZ
    subgraph T2 ["Trust Boundary 2: Ingress & Edge DMZ"]
        direction TB
        CFTunnel["<b>Cloudflare Tunnel</b> (cloudflared)<br/><i>Zero Inbound Open Ports · Outbound TLS</i>"]
        Gateway["<b>Nginx API Gateway (:8080)</b><br/><i>Rate Limiting · Route Dispatch · WebSocket Upgrade</i>"]
        CFTunnel -->|"Forward HTTP/WS"| Gateway
    end

    %% TIER 3: SERVICES
    subgraph T3 ["Trust Boundary 3: Internal Application Microservices Mesh"]
        direction TB
        ChatSvc["<b>Chat Service (:3004)</b><br/><i>E2EE Routing · Key Directory · Attachments</i>"]
        AuthSvc["<b>Auth Service (:3001)</b><br/><i>Argon2id Hashing · JWT Rotation · OAuth</i>"]
        ServerSvc["<b>Server Service (:3003)</b><br/><i>Server Guilds · Channel Hierarchy · RBAC Resolver</i>"]
        PresenceSvc["<b>Presence Service (:3005)</b><br/><i>Online / Idle / Typing State</i>"]
        CallSvc["<b>Call Service (:3007)</b><br/><i>WebRTC Signaling & Live Room Rosters</i>"]
        RemoteGW["<b>Remote Gateway (:3008)</b><br/><i>Remote Desktop Signaling & Input Relay</i>"]
        NotifSvc["<b>Notification Service (:3006)</b><br/><i>User Preferences · FCM Push Dispatch</i>"]
    end

    %% TIER 4: PERSISTENCE & DATA
    subgraph T4 ["Trust Boundary 4: Data & Persistence Tier"]
        direction LR
        PG[("<b>PostgreSQL (:5432)</b><br/><i>Prisma ORM · Opaque Envelopes · Relational Data</i>")]
        Redis[("<b>Redis (:6379)</b><br/><i>Pub/Sub Realtime Bus · Ephemeral Presence</i>")]
        ObjStore[("<b>Object Storage</b><br/><i>AES-256 Encrypted Attachments</i>")]
    end

    %% TIER 5: CLIENT RECIPIENT
    subgraph T5 ["Trust Boundary 5: Recipient Delivery & Client Decryption"]
        direction TB
        ClientRecipient["<b>Recipient Client (Desktop / Web / Android)</b><br/><i>Decrypts Envelope in Local Device Memory · Displays Notification</i>"]
    end

    %% TIER 6: EXTERNAL SERVICES
    subgraph T6 ["Trust Boundary 6: External Third-Party Dependencies"]
        direction LR
        ExtOAuth["<b>OAuth Providers</b><br/><i>(Google / GitHub)</i>"]
        ExtFCM["<b>Firebase (FCM)</b><br/><i>(Data-Only Push)</i>"]
        ExtTURN["<b>STUN / TURN Relays</b><br/><i>(NAT Traversal / ICE)</i>"]
    end

    %% PRIMARY RUNTIME PATH: E2EE MESSAGE INGESTION & REALTIME FANOUT
    ClientSender ==>|"1. Sealed Envelope (HTTPS/WSS)"| CFTunnel
    Gateway ==>|"2. Route /api/v1/chat & /ws/chat"| ChatSvc
    ChatSvc ==>|"3. Store Ciphertext Envelope"| PG
    ChatSvc ==>|"4. Publish message.created"| Redis
    Redis ==>|"5. Realtime Fanout (/ws/chat)"| ClientRecipient

    %% SECONDARY & ASYNC INTEGRATIONS
    ChatSvc -.-> ObjStore
    Gateway -.-> AuthSvc
    Gateway -.-> ServerSvc
    Gateway -.-> PresenceSvc
    Gateway -.-> CallSvc
    Gateway -.-> RemoteGW

    Redis -.->|"Event Stream"| NotifSvc
    NotifSvc -.->|"Dispatch Push"| ExtFCM
    ExtFCM -.->|"Background Wakeup"| ClientRecipient

    AuthSvc -.-> ExtOAuth
    CallSvc -.-> ExtTURN

    %% DIRECT P2P MEDIA (BYPASSES BACKEND)
    ClientSender <-.->|"Direct WebRTC DTLS-SRTP Mesh (Zero Backend Media)"| ClientRecipient

    %% Styling
    classDef primary fill:#1e40af,stroke:#60a5fa,stroke-width:2px,color:#ffffff;
    classDef service fill:#0f172a,stroke:#475569,stroke-width:1px,color:#f8fafc;
    classDef data fill:#1e293b,stroke:#64748b,stroke-width:1px,color:#f1f5f9;
    classDef external fill:#27272a,stroke:#71717a,stroke-width:1px,color:#f4f4f5;

    class ClientSender,CFTunnel,Gateway,ChatSvc,PG,Redis,ClientRecipient primary;
    class AuthSvc,ServerSvc,PresenceSvc,CallSvc,RemoteGW,NotifSvc service;
    class ObjStore data;
    class ExtOAuth,ExtFCM,ExtTURN external;

Full Documentation & Interactive Architecture: See the Architecture Overview on the documentation website for zoomable and pan-enabled diagrams, trust boundary audits, and component cards. Internal development specifications are maintained in development/devdocs/ARCHITECTURE.md.

There is no media server. call-service decides who may join a call and introduces the participants to each other; everyone then holds one RTCPeerConnection per other participant and the media goes straight between the two clients.

That is also what makes the deployment simple. A Cloudflare Tunnel carries HTTP and WebSocket and not UDP, so anything with a media server in it has to smuggle media past the tunnel - a routable address to advertise, published ports, a forced relay. None of that exists here: no port is opened for media, and no service ever tells a client where to connect.

The cost is the mesh: each participant uploads one copy per other participant, which is comfortable to about five on video and eight on voice alone. Bigger calls want an SFU, and that would be a deliberate decision rather than a drift.

How a request actually flows

Sending a message, from the keystroke or tap to the other person's screen. Every layer does one job, and the boundaries are where the security properties live.

┌──────────────────────────────────────────────────────────────────────┐
│ 1  Client (Desktop Electron / Browser Web / Native Android)          │
│    Store/State → encrypt with the channel key (AES-256-GCM)          │
│    • Desktop/Web: Zustand store + WebCrypto API                      │
│    • Android: Conversation store + javax.crypto AES/GCM/NoPadding    │
│    Plaintext stops here. Everything below sees ciphertext.           │
└───────────────────────────────┬──────────────────────────────────────┘
                                │  POST /api/v1/messages   (JWT bearer)
┌───────────────────────────────▼──────────────────────────────────────┐
│ 2  Nginx :8080          (in development, the Vite proxy stands in)   │
│    Route by path · rate limit · body cap · forward x-request-id      │
│    No business logic, no database, no idea what a message is.        │
└───────────────────────────────┬──────────────────────────────────────┘
                                │  http://chat-service:3004
┌───────────────────────────────▼──────────────────────────────────────┐
│ 3  chat-service (NestJS)                                             │
│    JwtAuthGuard         → who is this                                │
│    ValidationPipe / DTO → is the body the right shape                │
│    Controller (thin)    → hands off, decides nothing                 │
│    MessagesService      → resolveChannelAccess(user, channel):       │
│                           membership, role, overrides, allowlist     │
└───────────────────────────────┬──────────────────────────────────────┘
                                │  typed Prisma calls
┌───────────────────────────────▼──────────────────────────────────────┐
│ 4  Prisma (@betweenus/database)                                         │
│    One schema, one generated client, one connection pool.            │
│    Typed queries in, rows out - the only thing that speaks SQL.      │
└───────────────────────────────┬──────────────────────────────────────┘
                                │
┌───────────────────────────────▼──────────────────────────────────────┐
│ 5  PostgreSQL :5432                                                  │
│    messages(id, channelId, authorId, content = ciphertext, …)        │
│    attachments(id, key, size, … = ciphertext / unidentifiable blobs) │
└───────────────────────────────┬──────────────────────────────────────┘
                                │  row written
┌───────────────────────────────▼──────────────────────────────────────┐
│ 6  Redis :6379 - publish `message.created`                           │
│    Fanout, not storage: every chat-service instance is subscribed,   │
│    so a client on another instance is reached just the same.         │
└───────────────────────────────┬──────────────────────────────────────┘
                                │
┌───────────────────────────────▼──────────────────────────────────────┐
│ 7  /ws/chat gateways → sockets subscribed to that channel            │
│    → each client (Desktop / Web / Android) decrypts with channel key │
│      updates local state/cache (Zustand / Room DB) and notifies      │
└──────────────────────────────────────────────────────────────────────┘

The sender's own client is on that same socket path: there is no optimistic insert, so a message appears when it is real, and the copy that appears is the one that came back through the fanout.

Reads take the first five steps and stop: GET /api/v1/messages is the same guard, the same access check, and one indexed Prisma query on (channelId, createdAt). The clients (Desktop, Web, Android) cache the decrypted result per channel in memory/Room DB, so reopening a conversation paints immediately and refreshes behind it.

Two paths deliberately skip this stack:

• Media goes client ↔ client over WebRTC mesh (Desktop, Web, Android). call-service only relays the offers, answers and ICE candidates the clients use to find each other.
• Attachments are sealed on the client (Desktop, Web, Android) and uploaded as encrypted bytes; the server stores an object it cannot type and hands back a key.

Services

Each service is its own package with its own package.json and GET /health, and can be deployed on its own. The images are all built from one multi-stage infrastructure/docker/Dockerfile, one target per service, so the workspace is installed and compiled once rather than once per image.

user-service is a scaffold too; its routes (profiles, friends, user search) are served by chat-service until it exists.

Shared packages

Cross-cutting code only - no service's business logic lives here.

Realtime

• /ws/chat - JWT handshake, per-channel subscriptions, fanout driven by Redis pub/sub so any number of chat-service instances stay in step.
• /ws/presence - status, typing and voice rosters, with Redis holding the live state rather than any single process.
• /ws/remote - the relay between a remote session's controller and the agent on the machine, with every input event checked against the permissions frozen on the session.
• /ws/call - the roster of who is in a channel's call, and the offers, answers and ICE candidates two clients exchange to find each other.
• WebRTC, client to client - voice, video, screen share and a remote machine's screen. Never over WebSocket, and never through a server.

Data

PostgreSQL holds persistent state through Prisma: users, identities, servers, members, roles, channels, channel allowlists, friendships, messages, device keys, wrapped channel keys, notification settings, read markers, remote machines, remote grants, remote sessions and the remote audit trail.

Redis holds what is live and cheap to lose: presence, typing, voice rosters, pub/sub, rate-limit windows.

Object storage (local disk or any S3-compatible bucket) holds files. Postgres keeps the metadata; blobs never go in a column.

---

Security

• Client-side encryption. One ECDH P-256 identity keyring per account, HKDF key wrapping, AES-256-GCM for messages, attachments and call media. The account's vault key is held by the server (sealed with SETTINGS_SECRET) so every device opens the full history on sign-in; a stolen database alone opens nothing, but a compromised running server could. A call that cannot encrypt aborts rather than downgrading.
• Attachments are encrypted before upload, and their manifest - name, real type, size - travels inside the encrypted message body, not in columns. The server cannot type what it stores, so it serves everything as application/octet-stream with a download disposition.
• Authorization is server-side and central. resolveChannelAccess answers every channel question for chat-, call- and presence-service. A private channel is an allowlist that ownership does not override, and a channel the caller cannot see answers 404 rather than 403, so ids cannot be probed for.
• Refresh-token rotation with reuse detection - replaying a consumed token revokes the whole family.
• Last seen is answered per asker, in one function. Who may read a timestamp depends on the subject's setting, the friendship it may turn on, and whether the asker has hidden their own - so lastSeenOf is the only way to reach the value and applies all three before returning anything. The offline broadcast carries no timestamp at all, because a broadcast has one payload for every recipient and this answer does not.
• Blocking is enforced in one function. A block row is directional, the check reads both directions, and it lives in resolveChannelAccess - so history, pins, reactions, calls and typing all close through the same place. A blocked conversation answers 404, the same as a channel id a stranger invented, so neither the block nor its direction can be tested for.
• Recovering a password leaks nothing about who has an account. An account that does not exist, one that does, and a disabled one all get the same answer from /forgot-password. Reset tokens are stored hashed, are single use, and spending one signs every device out.
• Clearing your own history is a filter, never a delete. It hides everything from your screens on every device you are signed in on; the person you were talking to keeps their copy, because a conversation has two ends and this button only reaches one of them.
• Rate limiting twice: per address at the gateway, and again in the service through Redis, so every instance shares one budget.
• Hardened renderer: context isolation on, node integration off, sandbox on, a permission handler that allows only microphone, camera and display capture, and navigation locked to the app origin.
• Structured logs never carry passwords, tokens, keys or message content. Every request logs a request id, and the id survives a hop between services.

development/E2EE.md states the threat model and the known gaps plainly.

---

Requirements

• Node.js 20+
• pnpm 9
• Docker - Postgres and Redis in development; the whole stack in a deployment (see docs/docs/deployment/docker-compose.md)

Quick start

cp .env.example .env            # set JWT secrets & ensure DATABASE_URL matches POSTGRES_PASSWORD
pnpm dev:infra                  # Postgres and Redis in Docker
pnpm install
pnpm db:generate
pnpm db:migrate                 # creates the schema
pnpm db:seed                    # optional: [email protected] / betweenus123
pnpm dev:backend                # every service, no renderer (leave running)
pnpm dev:duo                    # second terminal: two signed-in test windows

Use pnpm dev:backend, not pnpm dev: the latter also starts the desktop renderer on 5173, which dev:duo needs for its own Vite. pnpm dev:desktop runs a single client against a running backend.

Everything in containers instead:

pnpm prod:up                      # pulls the published images and starts the stack
# Or: docker compose --env-file .env -f infrastructure/docker/docker-compose.yml up -d
# Building them here instead: -f infrastructure/docker/docker-compose.build.yml up -d --build

Default ports: gateway 8080, auth 3001, server 3003, chat 3004, presence 3005, notification 3006, call 3007, renderer 5173, admin panel 5174, web client 5175. Nothing listens for media: it goes directly between clients, on ports negotiated per call.

Deploying without cloning

A deployment runs published images, so a server needs the compose file, the two files it mounts and a .env - not a checkout of source no container reads. One command copies those in:

curl -fsSL https://raw.githubusercontent.com/aiyu-ayaan/BetweenUs/master/scripts/install.sh | sh

It writes ./betweenus in the repository's own layout and generates the secrets, then stops - it starts nothing. Edit .env (at minimum PUBLIC_API_URL), then bring the stack up yourself:

cd betweenus
docker compose --env-file .env -f infrastructure/docker/docker-compose.yml pull
docker compose --env-file .env -f infrastructure/docker/docker-compose.yml up -d

--dir /srv/betweenus puts the files elsewhere, --version alpha follows a release channel instead of latest, and --ref picks the branch or tag the files come from. Re-running it in the same directory is the upgrade: the three fetched files are refreshed, .env is left exactly as it was, and the same two compose commands apply it.

Cloning still works and is what you want to build the images yourself or to develop against them. The documentation under docs/ covers both paths, and everything after the first step is identical.

Production app builds & packaging

To build and package production release artifacts:

# 1. Build all packages, backend microservices, and web frontends:
pnpm build

# 2. Package the Desktop Client for the platform you are on:
pnpm desktop:package:win     # BetweenUs-<version>-Setup.exe, on Windows
pnpm desktop:package:linux   # BetweenUs-<version>.AppImage, on Linux

Output binaries are written to apps/desktop/release/.

Desktop client

Electron with a hardened preload, React, Tailwind and Zustand. It keeps running in the system tray when the window is closed - which is what makes a notification possible while it is "shut" - and starts with the system by default, with both switches in Settings → Notifications. Windows gets an NSIS installer and Linux an AppImage, and both update themselves from GitHub Releases.

On Linux (x86_64), one line installs the newest release for the current user. It puts the AppImage where the updater can replace it and adds a menu entry, an icon and a betweenus command. Then it starts the app, which registers itself in ~/.config/autostart:

curl -fsSL https://raw.githubusercontent.com/aiyu-ayaan/BetweenUs/master/scripts/install-linux.sh | sh
# ... | sh -s -- --channel beta     beta builds too
# ... | sh -s -- --uninstall        remove it; account data is kept

pnpm dev:desktop     one client against a running backend (the Dev channel)
pnpm dev:duo         two windows, two profiles, two encryption identities
pnpm dev:web         the browser client on 5175
pnpm dev:admin       the admin panel on 5174
pnpm admin:create    bootstrap the first administrator (password printed once)

Web client

The same app in a browser: apps/web is a bundle that mounts the UI out of apps/desktop/src rather than copying it, so chat, calls, screen share and settings are the same code in both clients. It is served at the root of the gateway, which makes a deployment one address for everything - the app at /, the admin panel at /admin, the services under /api.

What a tab does not get is the remote-desktop section: no machine list, no agent, no Remote Access settings. Screen capture by source, synthetic mouse and keyboard input and the OS keychain all live behind the Electron preload bridge, and a browser has none of it - so the app looks for that bridge and offers the section only where it can work.

Requesting control of somebody's screen share inside a call does work from a browser: the controller only sends input events over the data channel, and it is the machine being driven that needs the bridge. Sharing your screen from a tab and handing control the other way is refused, which was already the answer on macOS and Linux.

One address, and how to change it

A deployment is one URL. REST, /ws/chat, /ws/presence, /ws/call, /ws/remote and uploaded files are all behind the same gateway, so there is a single variable to set:

VITE_API_URL="https://betweenus.example.com"

Which URL that is:

The port is GATEWAY_PORT, never a service port: 3001, 3004 and the rest are internal to the Docker network and are not what a client talks to.

VITE_API_URL is read from the repo-root .env and baked in at build time, so it only affects a packaged build. pnpm dev ignores it deliberately - the Vite dev server proxies to the services itself, and its own origin is then the gateway.

It is only the default. Connect to a self-hosted instance on the login screen (and Change server in Settings → My Account) points the window at any other deployment: the address is checked before it is stored, and connecting elsewhere signs the window out and reloads. So a build can ship pointed at one deployment without being locked to it.

There is no exception to it. Media used to be one - an SFU negotiated its own path on 7881/tcp and a UDP range, so the deployment was one hostname plus a set of ports. Peers now reach each other directly, so the hostname really is the whole address: one URL carries everything a client asks the backend for, and media asks the backend for nothing.

Android client

A native Android mobile application built with Kotlin 2.2, Jetpack Compose, and Material 3 (apps/android).

• End-to-End Encrypted Chat: Client-side AES-256-GCM message encryption/decryption, channel & direct messaging, real-time typing indicators, read markers, and offline Room/memory caching.
• WhatsApp-Style Attachment Sheet:
  • Inline recent photos & videos tray with multi-select badge counter and batch sending.
  • Dedicated action buttons: Document (OpenMultipleDocuments), Camera (TakePicture with FileProvider), Gallery (PickMultipleVisualMedia), and Audio picker.
  • Handles modern Android 14+ (READ_MEDIA_VISUAL_USER_SELECTED), Android 13 (READ_MEDIA_IMAGES / READ_MEDIA_VIDEO), and legacy storage permissions.
• Modern Message Composer:
  • Rounded pill input well with accent active borders and typing indicator dispatch.
  • Built-in Emoji Picker Sheet with categorized emojis (Smileys, Gestures, Hearts, Fun & Symbols).
  • Quick Camera Button that automatically hides when the on-screen keyboard is open (WindowInsets.isImeVisible) or while typing to maximize input area.
  • Active circular Send button that illuminates in Accent when content is staged.
• In-Chat Media & Dedicated Viewers:
  • Responsive inline photo and video cards with client-side decryption.
  • Fullscreen Zoomable Image Viewer: Multi-touch pinch-to-zoom, pan gestures, reset zoom, and native system share sheet.
  • Integrated Video Player: Fullscreen playback with standard media playback controls.
  • Direct Gallery Storage Saving: "Save to Gallery" action saves media directly into the device's public media albums under Pictures/BetweenUs and Movies/BetweenUs using modern Android Scoped Storage (MediaStore).
• WebRTC Voice & Video: Peer-to-peer audio and video calls.
• Push notifications: FCM, data-only and sealed - the server never writes a notification, only the phone can. Messages, mentions, calls (a CallStyle full-screen intent that rings with the app dead), friend requests and being added to a server. Suppressed for a channel any of your other devices already has open and focused - see docs/docs/architecture/push-suppression.md.
• Attachments send under a foreground service: leaving the channel, taking a call or locking the phone no longer kills an upload halfway.
• Self-updating: checks its own GitHub releases on launch and once a day in the background, on a channel of alpha / beta / stable, downloads the APK built for the device's ABI (never the universal one), and hands it to Android's package installer - install now or snooze a day. See development/TODO.md (phase 15).

# Build and verify the Android client, from the repo root:
pnpm android:build           # compiles debug APK
pnpm android:test            # runs unit test suite
pnpm android:run             # installs it on a connected device and starts it

# Or from the module itself - the same wrapper, and what CI runs:
cd apps/android && ./gradlew assembleDebug

No particular JDK version to chase: any recent one on PATH launches the wrapper, which then provisions the daemon JVM itself - pinned to 17 by apps/android/gradle/gradle-daemon-jvm.properties, which is why CI's Java 21 and a developer's newer one both build the same thing. An Android SDK and adb on PATH are needed for android:run.

Remote desktop

A machine offers itself by turning on Settings → Remote Access. It enrols under the account signed in on it, keeps its credential in the OS keychain and dials out to the gateway - nothing listens, no port is opened, and 3389 is published nowhere in this stack.

Access is granted per person per machine, never by a server role: owning a machine grants everything on it, and anybody else holds exactly what they were given, optionally until a date. REMOTE_VIEW, REMOTE_CONTROL and REMOTE_CLIPBOARD are implemented; REMOTE_FILE_TRANSFER and REMOTE_AUDIO exist in the vocabulary and do nothing yet.

The screen travels directly between the two machines, the same way a call does: the gateway relays the offer and answer that set the connection up, and then carries no pixels. It relays input and refuses anything the session was not granted, so a view-only session cannot type however the client is built - and refusals are audited alongside the sessions themselves, which a machine's owner can read.

The owner connecting to their own machine starts immediately; anyone else raises a prompt on the machine that refuses itself if nobody answers, and a banner stays up for as long as the session does. Mouse and keyboard injection works on Windows and on Linux under X11; the macOS backend is written but has never been run, and a Wayland session is refused (Wayland allows no program to drive other windows). Where injection is unavailable a session can watch but not touch, and the viewer is told why. The agent also validates every event itself: coordinates, key codes, wheel deltas and rate.

Public ingress

BetweenUs is one public hostname. If a cloudflared already runs on the server, add one ingress entry:

- hostname: betweenus.example.com
  service: http://localhost:8080     # GATEWAY_PORT

and reload it - no extra container. To let BetweenUs bring its own tunnel instead:

CLOUDFLARE_TUNNEL_TOKEN=... docker compose   -f infrastructure/docker/docker-compose.yml --profile public up -d

infrastructure/cloudflare/tunnel.yml documents both, and why the tunnel is now enough on its own. It carries HTTP and WebSocket, which is all signalling is; media is UDP, which no tunnel carries, and does not need to - it goes straight between the clients. Nothing else has to reach the host, so no port is opened for media anywhere in this repo.

The documentation under docs/docs/deployment/ walks the whole thing end to end - what to generate, how to create the first administrator, and what each endpoint behind the tunnel is for.

File storage

@betweenus/storage picks its driver from the environment:

• S3 variables empty (default): files land in LOCAL_STORAGE_PATH (./storage-data) and chat-service serves them. Nothing to configure.
• S3_ENDPOINT, S3_BUCKET, S3_ACCESS_KEY, S3_SECRET_KEY all set: the S3 driver takes over. Partial configuration stays on local disk rather than half-working.
• STORAGE_DRIVER=local|s3 forces one. Forcing s3 without credentials fails at boot instead of silently falling back.

In Docker the local driver writes to /data/uploads inside chat-service, and UPLOAD_DATA_PATH decides where that is on the host: a bare name is a Docker volume (upload-data, the default), a path is a bind mount.

UPLOAD_DATA_PATH=/mnt/disk2/betweenus-uploads   # or D:/betweenus-uploads on Windows

Keys are UUID-based, so a client filename never decides where a file lands. Anything over 8 MB uploads in parts, with the session carried by the client as a sealed ticket rather than held as state in a service.

---

Repository layout

apps/
  admin/               Admin web panel (Vite + React + Tailwind)
  android/             Native Android client (Jetpack Compose + Material 3)
  desktop/             Desktop client (Electron + Vite + React + Tailwind)
  web/                 Web client (Vite + React + Tailwind)
  services/
    auth-service/      JWT sessions, tokens, user authentication
    call-service/      Mesh call signalling, room state, WebRTC offer/answer relay
    chat-service/      E2EE messages, direct messages, attachments, friend relationships
    notification-service/ Push notifications, unread tracking, mute settings
    presence-service/  Online / idle / dnd / offline status, typing indicators
    remote-gateway/       Remote machines, permissions, session relay, audit
    remote-agent/         Scaffold - for a headless machine with no app on it
    user-service/         Scaffold
packages/                 shared-types, database, auth, permissions, events,
                          nest-common, storage, websocket, logger, config
infrastructure/           docker compose, nginx, cloudflare
scripts/install.sh        one-command deployment, no clone required
development/              planning, MVP, E2EE design, API security, testing guide, TODO, Android roadmap
docs/                     full Docusaurus documentation suite (architecture, services, security, deployment)

Common commands

Testing and CI

Three layers, all runnable locally:

1. Self-checks (pnpm check) need no infrastructure: the crypto primitives, the storage drivers including a multipart round trip, the permission arithmetic, the logger's redaction, and the API's trust boundaries - which address a request is counted against, which redirect a finished sign-in may be sent to, which algorithm a token is verified with.
2. Smoke scripts drive the real HTTP and WebSocket surface against running services and exit non-zero on a failed assertion.
3. Manual walkthroughs for what only a human can judge - two people in a voice call, a shared screen, a notification arriving from the tray. development/TESTING.md lists them.

GitHub Actions runs install → lint → typecheck → build → self-checks, then an integration job with Postgres and Redis containers that applies the migrations, starts the services and runs every smoke script. A third job packages the Linux AppImage and boots it under Xvfb (.github/scripts/smoke-appimage.sh), the same check the release runs before it publishes one.

API surface

POST /api/v1/auth/register|login|refresh|logout    GET /api/v1/auth/me
GET  /api/v1/auth/username-available    POST /api/v1/auth/forgot-password|reset-password
GET|POST /api/v1/servers          POST /api/v1/servers/join
GET|PATCH|DELETE /api/v1/servers/:id       POST /api/v1/servers/:id/leave
GET /api/v1/servers/:id/members   PATCH|DELETE /api/v1/servers/:id/members/:userId
GET|POST /api/v1/channels         PATCH|DELETE /api/v1/channels/:id
GET|PUT /api/v1/channels/:id/members       GET|POST /api/v1/messages
GET /api/v1/users/search          GET|POST /api/v1/friends
POST /api/v1/friends/:id/accept   DELETE /api/v1/friends/:id
GET|POST /api/v1/dm               GET|POST /api/v1/blocks
DELETE /api/v1/blocks/:userId     POST /api/v1/messages/clear
POST /api/v1/uploads              GET /api/v1/uploads/:key
GET|POST /api/v1/e2ee/devices     GET /api/v1/e2ee/keys/:channelId
POST /api/v1/e2ee/keys            POST /api/v1/calls/token
GET|PATCH /api/v1/notifications/preferences
GET /api/v1/notifications/unread  POST /api/v1/notifications/read
GET|POST /api/v1/remote/machines  PATCH|DELETE /api/v1/remote/machines/:id
GET|PUT /api/v1/remote/machines/:id/grants
GET /api/v1/remote/machines/:id/audit
POST /api/v1/remote/sessions      DELETE /api/v1/remote/sessions/:id
GET /api/v1/admin/...             (administrators only)
WS   /ws/chat                     WS  /ws/presence      WS /ws/remote
WS   /ws/call                     (signalling, the Listen Together queue, the game board)
GET  /health                      (every service)

Errors share one shape everywhere:

{ "error": { "code": "CHANNEL_NOT_FOUND", "message": "Channel not found", "requestId": "..." } }

---

Recently added

Newest first. Every one of these is in development/TRACK.md with the reason it was built the way it was; this is the short version.

Last seen, and a line about yourself

• The conversation header answers "are they there". A direct message now draws "online", or "last seen yesterday at 11:55 PM", under the name - the place every messenger puts it, because the question belongs beside the name rather than behind a tap into a profile. On all three clients.
• Every last-seen line carries the clock. A day on its own answers roughly when and leaves the question people actually have - was that this morning, or ten minutes before I looked - to be worked out from nothing. Today and yesterday name themselves, then the weekday while a weekday still names one day, then the date; all four with the time, and all four on the reader's own clock.
• A profile card, on a hover or a double tap. Picture, name, whether they are here, when they were last here, and their about line. Resting on a member row or a message's author opens it on desktop and web the way Teams does - 600ms to open, 200ms of grace to cross the gap and read it. Android reaches the same card by the gesture a phone has instead: a double tap, which was the one gesture nothing had claimed.
• An about line, defaulting to "Hey, I'm on Between Us." 140 characters, counted in code points so an emoji is one character to the person typing it. It rides on the member and friend payloads the clients already fetch rather than being fetched when a card opens, because a card that appears on hover has no room for a spinner.
• Invisible really is invisible. The last-seen value stops being written the moment somebody chooses it and freezes at the last time they were genuinely visible. A status that hid you but went on publishing when you were last here would not be hiding you.
• Nobody can ask about a stranger. presence.query is scoped through the same audience every other presence event goes through - people you share a server or a friendship with - so it cannot become a "who is online" oracle over the whole deployment.
• You decide who sees yours: everyone, your friends, or nobody. "Everyone" is a ceiling rather than the whole world - it means everybody who could already see your name. "Nobody" is reciprocal: an account that hides when it was last here does not get to read anybody else's, which is what stops the setting being a one-way mirror everybody switches on the moment it costs them nothing. Narrowing to friends costs nothing, because that limits who reads you rather than what you may read.
• A hidden timestamp is absent, not refused, and absent is what a brand-new account looks like too - so a missing line cannot be used to test for the setting or its tier. The status still arrives; it is the timestamp that is private, not the account.
• A dot on every face in a conversation. The avatar beside a message, the one in a direct message's header, and the ones in the pinned and search panels all carry the presence dot every other list in the app already had - a channel is a room of people you may not know are there, and the face was already on screen. All three clients.
• A profile card always says something. Offline with no timestamp - a new account, one whose last seen is hidden from you - used to draw a blank where the status belongs, which reads as a card that failed to load. It says "Offline" now, and spells out idle and do-not-disturb where the header deliberately collapses both to "online".
• A clock that runs fast does not report the future. A laptop a few minutes ahead of the server would otherwise be told somebody was last seen at 3:34 beside a wall clock reading 3:30, which reads as broken software rather than as a wrong clock. Both clients clamp to now.
• The admin panel's "last seen" column stops being a guess. It was the newest live session, which only ever meant "when they last signed in"; it is the real value now, and falls back to the old approximation only for an account that has not connected since the column existed.

An Android layout that uses the screen it is on

The Android client drew a phone layout everywhere: a conversation, with the channel list behind a hamburger. On a tablet or an unfolded foldable it now puts the list permanently beside the conversation and drops the hamburger, and where there is a fold the split lands on it with the seam left empty rather than drawing content across a hinge. A fold too near an edge is ignored instead of obeyed into a pane nothing fits in. Folding the device back up returns to one pane without restarting the app.

The decision is a pure function with ten assertions behind it, because every case it has to get right is a device or a posture that is impractical to sit and hold.

Accounts: blocking, clearing, and a way back in

Four things about an account rather than about a conversation. Blocking somebody ends the friendship and closes the conversation for both sides - without deleting it, so unblocking brings the whole history back. Clearing a chat — from the ⋮ in its header, or all of them at once from settings — hides those messages on every device you are signed in on and touches nobody else's copy; the confirmation says "Delete for me" because that is exactly what it is. Forgot your password? sends a link when the operator has configured a mail server in the admin panel, and says to ask an administrator when they have not - who can then open a reset window on the account from the panel, which is how a self-hosted deployment with no SMTP server still has a way back in. And a username is checked while you type, against a Bloom filter in front of the unique index, and is now normalised to lower case so the constraint and the username login finally agree. Every auth-service instance feeds its filter from the event bus, so a name taken on one is refused by the others at once. A blocked person you still share a server with is folded: each run of their messages becomes one quiet "Blocked message · Show" row, and they no longer wake your phone or raise a toast. A poll cannot be forwarded, since its ballot belongs to the original.

All three clients have all of it.

Play together

• Six board games inside a voice call. Tic-tac-toe, Connect Four, Reversi, Dots and Boxes, Ludo and Carrom, on the same stage the shared video uses. One board everybody in the call sees, two chairs anybody can take, a tally per chair and a rematch button.
• A move is a number, not a picture. "Column four" crosses the wire and call-service applies the rules, so it costs no uplink and nobody has to keep a window open. A shared screen would have been a game one person plays while everybody else watches a recording of it.
• The gateway referees. A client sends what was clicked and never a board, because a board a client can set is a board a client can set to won - and two people clicking the same square need one answer, which is the same job call-service already does for the screen share.
• Carrom is a real simulation - friction that actually stops a coin, restitution off coins and cushions, mass ratios and sizes from a real board. The gateway simulates the shot to referee it and every client simulates the same shot to draw it, so what you watch is the shot rather than an impression of it, and its last frame is the board that was already agreed.
• Ludo's die belongs to the server. The tumble on screen is started by the number arriving, not by the button - a die animated first and reported afterwards is a client deciding its own sixes.
• One Apps button. Both shared activities live behind it rather than beside each other in a row of call controls, so the row says what it is - the call - and the things two people do together are one screen in, on the voice stage where every shared thing is already drawn. Not a popover: a six-game library does not fit in one, and a menu over a call covers the faces it is meant to sit beside.
• Fullscreen for the board, because carrom's coins are a fiftieth of the board across and a stage shared with faces and a seat rail is where a thin cut and a miss are four pixels apart.
• The rules are in the contract, imported by both ends, so what the referee decides and what every window draws cannot drift apart. Adding a fifth game is a file, a line in the registry and a board component; the gateway needs no change at all.

Listen together

• A shared music queue inside a voice call. Everybody hears the same track, in step, while they work. Audio only - there is no shared picture, because a picture would be a screen share in everything but name. There is no host either: anybody can add, skip, seek or pause, and call-service decides the order the way it already does for the screen share.
• The desktop app plays youtube.com itself, in a hidden view beside the one you browse in, driven against the page's own video element. The /embed/ player refuses a record label's video outright - error 101 or 150, a black frame - and that is most of the music anybody queues. The site does not refuse the site. The web client keeps the embed, because youtube.com will not be framed by any browser tab, and says so when a track will not play.
• The real youtube.com, inside the app, on desktop. Signed in as you, with search, your playlists and your subscriptions, and a button that queues whatever is on screen - because nobody keeps a list of video ids. It is a WebContentsView the main process owns in its own session partition, not a webview and not an iframe: youtube.com refuses to be framed, which is why a browser tab cannot have the site at all.
• Search, in the web client, on the same Browse tab. The gesture is the same
  • look for something, press it, the call watches it - reached the only way a web page is allowed to reach it: the YouTube Data API, called from the person's own browser, so the search goes to Google and never through BetweenUs. Optional the way TURN is optional; unset VITE_YOUTUBE_API_KEY and the paste box carries on.
• It is not a screen share with the sound on, and that is the whole design. A share costs the sharer one upload per listener, squeezes music through a codec tuned for speech, and pins them to the tab. Here no audio crosses the wire at all - each client plays the track itself, at full quality, from its own connection. What the call agrees on is a queue and a position, which is a few hundred bytes when somebody presses a button and nothing in between.
• A session stores where the track was and when, not where it is - so one message stays correct until somebody presses something. Clients measure their clock against the gateway's the way NTP does, because two laptops disagree about the time by whatever their NTP daemons last settled on, and a session that trusted Date.now() would be exactly that far out with nothing on screen to explain it.
• Drift is left alone below a second and a half, then closed in one seek. Correcting tighter means seeking every few minutes, and a seek is a hole in the music where being a second out is only being a second out.
• The music ducks under whoever is talking and fades back a beat after the last word. That is what makes it working together rather than watching a film.
• No YouTube script runs in the renderer. script-src stays 'self'; the embed is driven over the postMessage protocol iframe_api.js is a wrapper around, in a sandboxed cross-origin frame. The only directive that changed is frame-src. See docs/docs/architecture/listen-together.md.

Notifications & Android self-update

• Push suppression across devices. A message no longer buzzes a phone whose owner has that exact channel open and focused on another device - desktop, web or a second phone. Per account, per exact channel: a different server still notifies normally everywhere. Clients report focus over /ws/presence; notification-service asks presence-service before every fan-out and drops the readers. docs/docs/architecture/push-suppression.md.
• A notification that has been read elsewhere takes itself down. The other half of the same problem: focus stops a push being sent, and does nothing about one already sitting in a pocket. Marking a channel read - which every client already does on opening one - now raises channel.read, and the account's other devices cancel that conversation's notification and its unread badge.
• The connection panel, on Android. Bitrate each way, packet loss, round trip and frame size per peer, plus the warning when a link is bad enough to explain what somebody is hearing. A port of the desktop's, arithmetic for arithmetic, because two clients in the same call must not disagree about what 5% loss is.
• Call reconnection on Android, and the deadlines that end one. A link that stops carrying media is retried with an ICE restart on a backoff - which is new: the old single restartIce() did nothing, because a restart only recovers anything when somebody offers. Tiles say "Reconnecting…" and then "No connection" rather than only going grey. A call whose server has been unreachable for forty-five seconds ends itself, and so does one left alone for five minutes.
• Every attachment sends under the foreground service, not only pictures and video. A document used to upload inline in the chat screen's own scope, which died the moment the screen did - leaving the channel mid-upload left its parts in object storage and nothing to finish them. Everything picked now goes through the same preview and the same Outbox queue.
• Android updates itself. Checks its own GitHub releases on launch and once a day in the background (WorkManager, unmetered network), on a channel of alpha / beta / stable, downloads the APK built for the device's ABI and hands it to a PackageInstaller session - which reports what happened, including a refusal from a build signed with a different key. Install now, or snooze a day by default. development/TODO.md (phase 15).

Deployment & Backups

• Single Point Datapath (BETWEENUS_DATA_PATH). pnpm data:path <path> sets up a unified storage root for data/postgres, data/redis, data/media (pictures/ and attachments/), and backup/. Derived path environment variables (POSTGRES_DATA_PATH, REDIS_DATA_PATH, UPLOAD_DATA_PATH, BACKUP_DATA_PATH) are written directly to .env while preserving fallback to Docker named volumes.
• Pre-Migration Database Backups & Write Pre-checks. db-backup-once container automatically executes a pg_dump SQL archive before prisma migrate deploy runs. Write permissions on BACKUP_DATA_PATH are validated automatically by backup.sh and data-path.mjs to prevent silent output redirection errors.

Security

• Adding a member is friends-only. POST /servers/:id/members used to take any username and add it - being added is a member list entry, a notification and a set of readable channels, none of which the person was asked about. Letting a stranger in is what an invite link is for.
• A moderator cannot edit or kick an administrator. The permission check answered "may you manage members at all" and the role check answered "may you hand out that role"; neither asked who the member was.
• Attachments need a session to download. They are ciphertext either way, but the bytes and their size went to anybody who ever saw the URL. Avatars stay public, because an <img> tag cannot carry a header.
• Deleting a photo deletes the photo. The blobs are purged in the same request now, on the server and out of every client's decrypted cache; the six-hourly sweeper is the backstop rather than the only path. It used to mean "the ciphertext leaves the object store some time today", and on the clients the plaintext simply outlived the message.
• One-time media is protected as far as software honestly can be, and the three clients differ. No thumbnail, no download, no context menu, nothing selectable, anywhere. On Android the viewer sets FLAG_SECURE and on the desktop it sets setContentProtection, so on both the operating system itself refuses the screenshot and records black. A browser cannot do this — a page has no say over the screen it is drawn on — so the web build does not open one at all, and offers the app instead of quietly breaking the sender's promise. A second camera pointed at the screen defeats all of it and always will, so what the feature actually guarantees is that the file stops existing everywhere once its recipients have seen it.
• A key per machine, not per account. The device directory is a list now, a channel key is wrapped once per device, and revoking one deletes its wraps and re-keys every channel it could read.

Webhooks

• A URL, and nothing else. curl -X POST "$URL" -d '{"content":"deploy done"}' and it is in the channel. No account, no OAuth, no SDK — which is the point, because the thing calling it is one line of a deploy script.
• Discord's request shape on purpose. If you already have something pointing at a Discord webhook, change the URL and stop. embeds are accepted and rendered to Markdown; username and avatar_url are accepted and ignored, and the response tells you which fields it ignored so you are not left debugging your own code.
• The one thing here that is not end-to-end encrypted, said out loud. A build server holds no channel key and cannot be given one — handing a channel key to a shell script hands away the channel. So these messages are stored in the clear, every client badges them WEBHOOK · NOT ENCRYPTED, and the panel that creates one says so before the button rather than after. Do not send secrets through one, and do not put one on a channel where the encryption is the point.
• The URL is shown once, because only a hash of it is kept — the same rule every other token here follows. Rotate is the way back from a leak, and from a URL nobody wrote down.

Chat

• Replies, on all three clients - a quote inside the encrypted body, so the server never learns who is answering whom.
• : emoji search, ranked exact-then-prefix-then-substring, with a shortcode table for every emoji the picker draws.
• Per-server custom emoji, animated included. Upload a picture, name it, type :name:. Animated files are stored exactly as uploaded, which is the whole trick - re-encoding a GIF keeps the first frame and throws the rest away. The pictures travel inside the encrypted message, so a shortcode forwarded into a direct message still renders.
• Invite links. /invite/<code>, redeemed after sign-in, surviving the reload that sign-in causes.
• A member menu: message, add friend, mute, copy username. Muting is per person and follows the account; a muted person is silent even when they mention you.
• History that pages backwards on desktop and web, anchored so the reader stays where they were reading.
• A local cache on desktop and web - servers, channels, conversations and the last few hundred messages per channel, as the ciphertext the server sent.
• Drafts that survive a restart: unsent text and the pending reply are kept per channel and DM in that same local store (plaintext on your own device, never sent to the server), cleared on send and on sign-out, with a "Draft" label in the list. Also on Android.
• An unread line that survives a restart, with a bar to jump to it.
• Media preview before sending, drag-and-drop anywhere in the conversation, and video that loads itself rather than waiting for a click.

Voice

• One screen share at a time, replacing the one before it the way Teams does, arbitrated by call-service because two simultaneous claims need one answer.
• Join and leave tones, synthesised at both ends at the same two frequencies.
• A manual quality override - bitrate, frame rate, codec - for a share and for a remote session, which is how a LAN gets told it is a LAN.
• Devices that follow the hardware: a headset plugged in mid-call is moved to, and a chosen device that is missing says so.

Android

• Reconnect on a network-change callback rather than waiting out a backoff measuring a problem that has gone.
• Microphone processing, a hi-fi mode and an output route, applied to a call that is already up.
• Invite management, and a fix to a line that still told people to share the slug.
• R8 on the release build, code and resources shrunk, with keep rules that each say why they exist.

Known gaps

• No backend has been run in the sessions that wrote most of the above; the smoke scripts are the integration tests and they need a database and Redis.
• Migrations are waiting to be applied - see the list at the bottom of development/TRACK.md, including two whose names sort backwards.
• Listen Together has not been run with two real clients: the transport and the clock have self-checks, and the desktop player has been driven end to end against real youtube.com (playback, seek, pause, volume, mute recovery, track change), but the ducking and the two-window sync have not. See development/TESTING.md for the walkthrough.
• Play Together has not been run with two real clients either. The referee and the four sets of rules have self-checks, and so does the player's-eye view; the boards themselves need two windows and a person in each.
• The 16-theme suite's Light Mode category (Daylight, Solarized Light, Rosé Pine Dawn) is landed and shared across Desktop, Web and Android; the stale "no light theme" notes still in development/devdocs/TODO.md predate it and need correcting.

Conventions

• TypeScript strict everywhere; no any in committed code.
• Controllers stay thin, services hold the logic, persistence stays in services.
• Every service exposes GET /health and answers the shared error contract.
• Conventional commits (feat:, fix:, chore:, docs:).

Licence

Source-available, view only. Not open source, and not MIT.

You may read this code and refer to it. You may not copy, modify, redistribute, or use it - in whole or in part, in source or compiled form, commercially or not - without written permission from the copyright holder. Full terms in LICENSE.

Third-party dependencies keep their own licences.

Documentation
